PTJ 270S

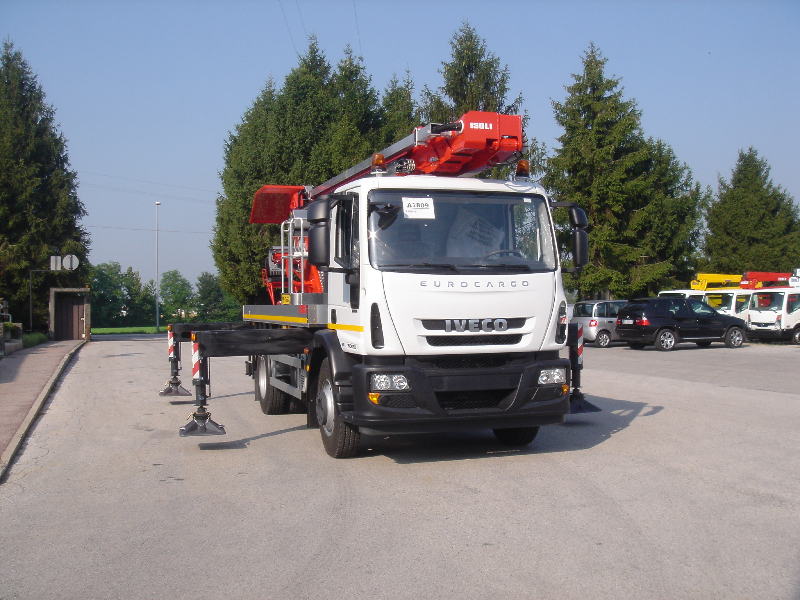

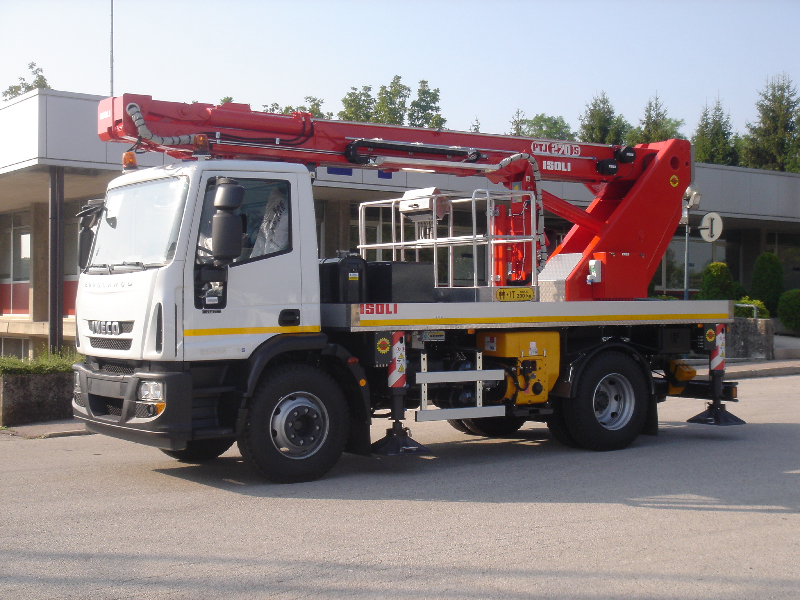

Truck-mounted aerial lift work platform
Ausstattung & Features
- Fibre glass basket
- 12V head light in the basket
- Water or compressed air soch et in the basket
- Electro-pump 220/380 auxiliary electro-pum for indoor applications
- Tilting side walls on chassis perimeter
- Non standard painting
- For stabilizzers footh plates
- Automatic stabilizzers
- Auxiliary electric power pack powerd by truck battery
- All roof flashing beacon
- Hight key selector
- Other on request
Technische Daten

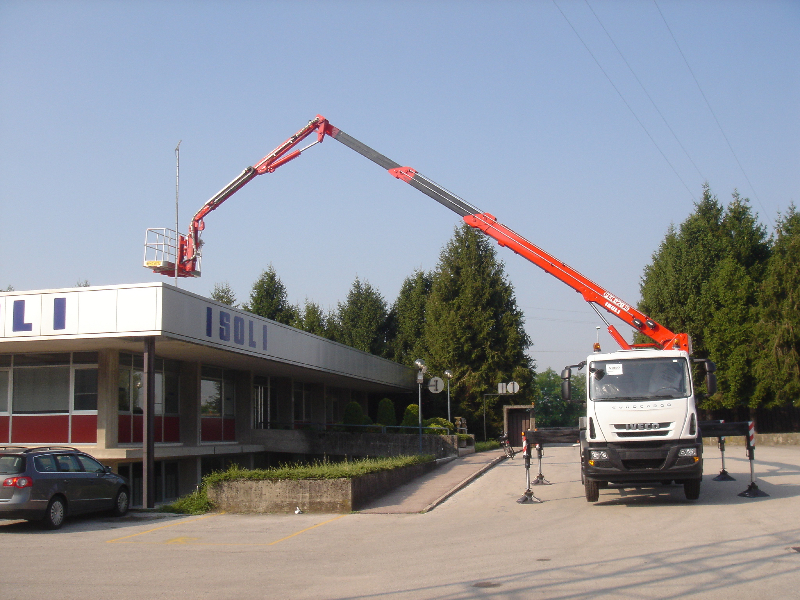

- Max Working height 27.00 m

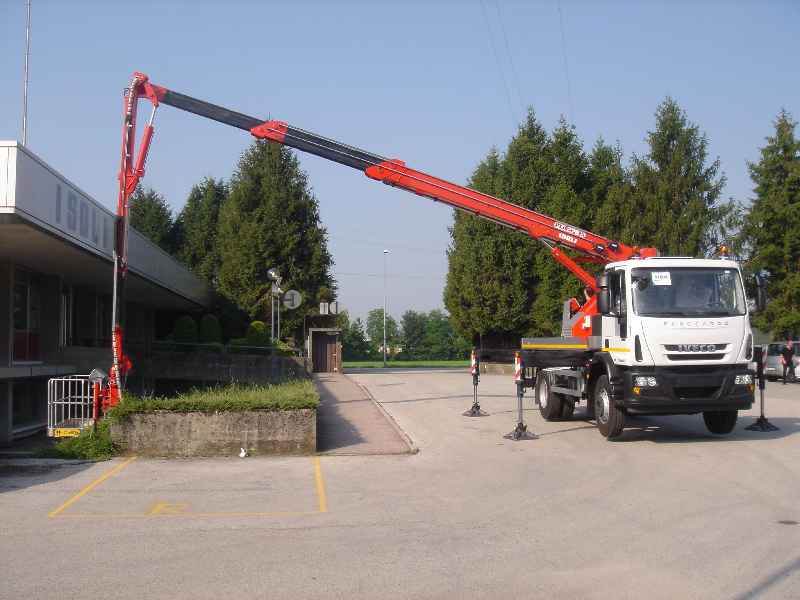

- Working outreach 19.70 m
- Safe working load: 200 kg Including 2 people
- Hydraulic extendible stabilisers with independent hydraulic control and with
free end bearing
- 360º turret rotation continuous

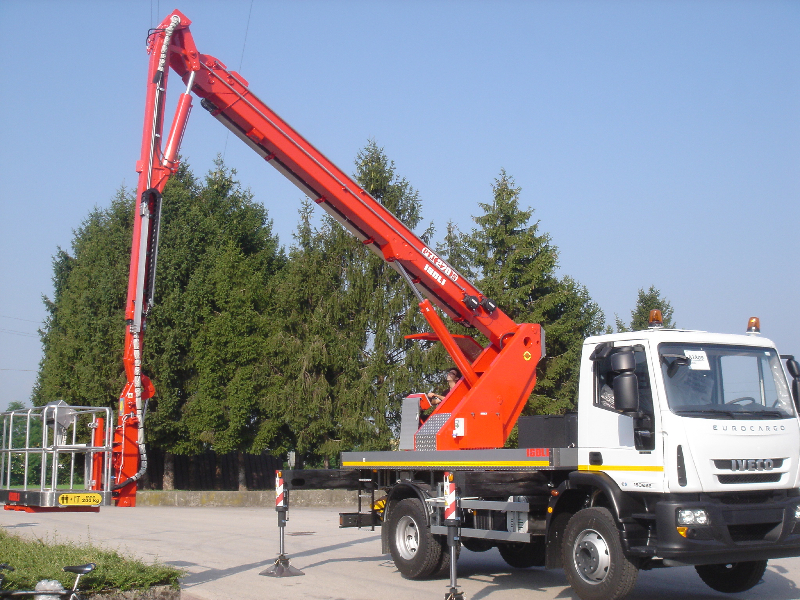

- 3 section telescopic boom, 2 of which are hydraulically extended by means of
a double-acting jack with chain driving gear system
- 2 section side articulated telescopic jib
- Aluminium cage with 180° rotation, dimensions 2200x800x1100H mm
- Cage levelling by means of a hydraulic cylinder with connecting rod
compensator mechanism controlled by an electronic device
- Working outreach limiter with double security control device
- Dual electro-hydraulic control panels at the turret and in the cage with
proportional operating
- Stabilisers controls on LH and RH side
- Load sensing system on the cage
- Locking and balancing valves flanged directly on all the jacks
- Security interlock device between the stabilisers and the telescopic boom
- Emergency descent system by means of a hand pump operated from the platform
deck
- Direct access to the cage from ground level
- Non-slip aluminium platform deck with aluminium side boards, H = 200 mm
- 4 jacking system
- Dismountable ground plates. Dim. 500x500 mm
- Control panel in the turret with seat for the operator and protection roof
- Tool box under the platform deck., dim. 500x300x450mm
- 2 orange rotating lights
- CE mark
- 220 v electric outlet in the cage
- Engine start/stop operated from the cage and turret
- Interphone communication between the two control panels
- Access ladder to the platform
- Rear mudguards and splashguards on all the mudguards
- Painting of the equipment (one colour)
